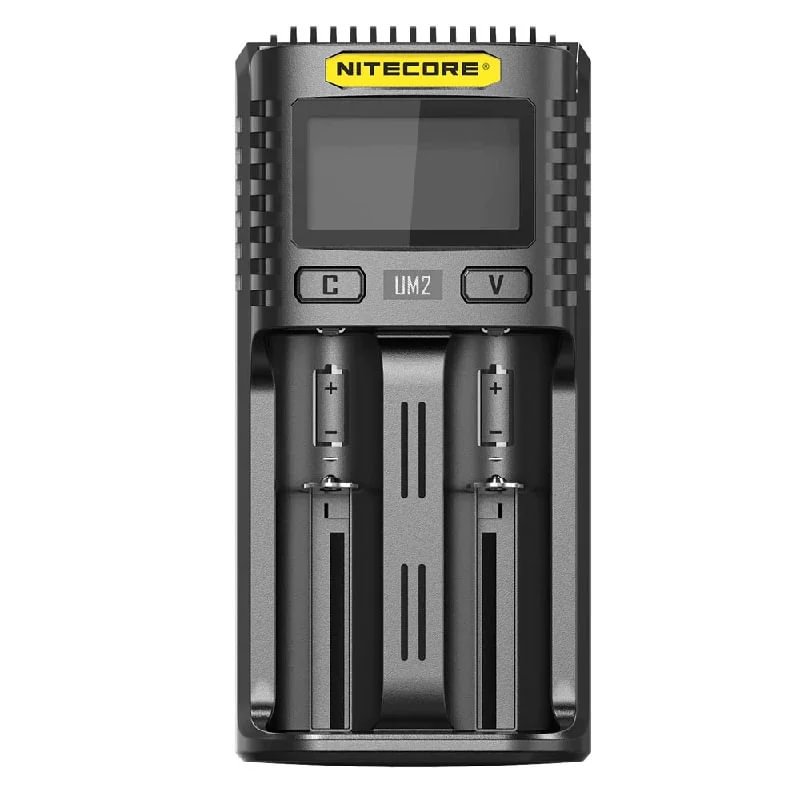

Nitecore UM2 is a universal smart charger compatible with almost all cylindrical rechargeable batteries, thus eliminating the need to own several chargers. The UM2 automatically detects Li-ion, Ni-MH and Ni-Cd batteries, and through manual selection is also capable of charging LiFePO4 batteries. Intelligent charging circuitry selects the optimal charging mode (CC, CV and dV/dt) for a given battery and each of the UM2's four microcomputer-controlled charging slots then monitors and charges the battery independently. Furthermore, an integrated digital LCD screen clearly displays charging progress, voltage, current while an intelligent automatic power-off function terminates current when charging is complete.
ITEM FEATURES
- Each of the 2 battery slots monitors and charges independently.
- Optimized charging design for IMR batteries.
- Integrated LCD panel clearly displays charging parameters and progress.
- Two conveniently located side buttons allow easy selection of specific battery types and charging parameters.
- Intelligent circuitry detects the battery type and status before entering automatic charge mode (CC, CV, dV/dt).
- Automatically detects battery power status and selects the appropriate voltage and charge mode (with the exception of LiFePO4 batteries which require manual selection).
- QC Input Enabling a Total Max Output of 3000mA.
- Compatible with LiFePO4 batteries.
- Compatible with small capacity batteries.
- Automatically stops charging when complete.
- Features over-charge prevention to protect batteries.
- Features temperature monitoring to prevent overheating.
- Made from durable ABS (fire retardant / flame resistant).
- Features reverse polarity protection.
- Designed for optimal heat dissipation.
- Certified by RoHS, CE, FCC and CEC.
Input
DC 5V/2A 9V/2A
18W (MAX)
Output voltage
4.35V±1% / 4.2V±1% / 3.7V±1% / 1.48V±1%
Output current
QC Mode: 1,500mA*2 (MAX)
Standard Mode: 1,000mA*2 (MAX)
Compatible with
IMR/Li-ion/LiFePO4: 10440, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 17700, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22500, 22650, 25500, 26500, 26650, 26700
Ni-MH/Ni-Cd: AA, AAA, AAAA, C, D
Color: Black
Dimensions: 159mm x 107mm x 41mm / 6.26 inch x 4.21 inch x 1.61 inch
Net Weight: 232.8g / 8.21 oz (Charging cable not included)
PACKING INCLUDED
- 1 x Nitecore UM2 Charger (Not include batteries)
- 1 x Charging Cable
- 1 x User Manual
